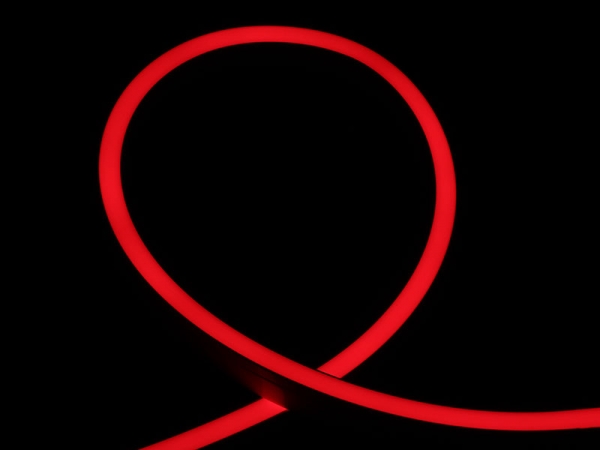

LED flexible silicone neon tube is a kind of innovative light with environmental friendly silicone material full packaged neon band, which is extruded together with the silica gel and the LED PCB by the extruder. In order to give clients convenience and save the storage cost pressure, we have developed numbers of silicon flex tube for different purpose and different neon lighting request.
size drawing
.png)
SPECIFICATIONL
|
Series: |
Side-view |
|
anti-chemical corrosion: |
Yes |
||
|
Model: |
AP302F |
anti-UV: |
Yes |
|||
|
Size (mm): |
W12*H20mm |
|
Flame resistant: |
Yes |
||
|
Max strip width: |
10mm |
solvents resistant: |
Yes |
|||
|
Led Qty: |
60Leds/m |
|
saltwater resistant: |
Yes |
||
|
IP Process: |
IP62/IP65/IP67 |
IK08 protection: |
IK 08 |
|||
|
Cutting unit: |
Arbitrary cutting |
|
Vertical Bending: |
No |
||
|
Cutting length: |
|
|||||
|
Beam angle: |
>120° |
|
|
|||
|
Material: |
Silicon |
|||||
|
Min bending radius(mm): |
>60mm |
|
|
|||
|
Accessories: |
Plastic white End caps Silicon end caps Mounting clips Alu channel |
|||||
|
Warranty: |
3 Years |
|
|
|
||
|
Certificate: |
CE、RoHs |
|||||
|
Customized size: |
Accept |
|
|
|
||
TEST REPORT
| LED Strip | IP20 LED Strip | Strip with LED home AP302F | ||||
| Color temperature(K) | Lumen(LM/W) | Ra | Color temperature(K) | Lumen(LM/W) | transmittance | |
| 2835/60D/2700K/10mm | 2895 | 108.86 | 80 | 2516 | 30.66 | 28.00% |
| 2835/60D/3000K/10mm | 2747 | 110.35 | 80 | 2424 | 29.13 | 26.40% |
| 2835/60D/4000K/10mm | 4127 | 110.56 | 80 | 3396 | 32.68 | 29.55% |
| 2835/60D/6000K/10mm | 6642 | 114.4 | 80 | 4845 | 31.71 | 27.71% |
APPLICATION
